Block Diagram Simplification - Rules and Equivalents

Home -> ChE Learning Resources -> Solved Problems -> Process Control->

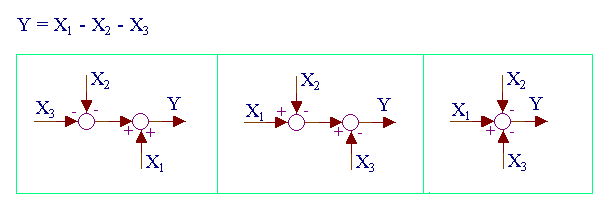

Rule:1

Equivalents

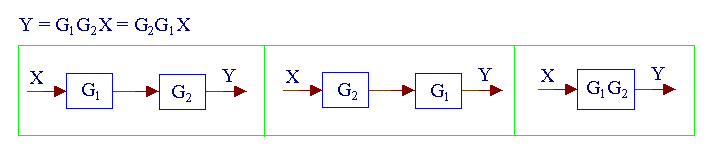

Rule: 2 (Associative and Commutative Properties)

Associative and Commutative Properties

Rule: 3 (Distributive Property)

Distributive Property

Rule: 4 (Blocks in Parallel)

Blocks in Parallel

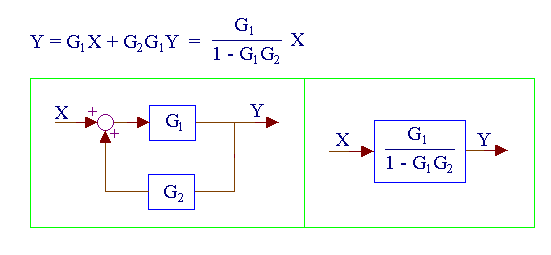

Rule: 5 (Positive Feedback Loop)

Positive Feedback

Positive Feedback

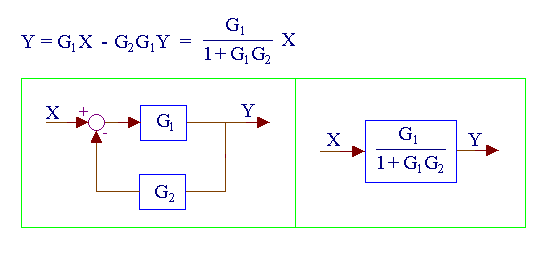

Rule: 6 (Negative Feedback loop)

Negative Feedback

Negative Feedback

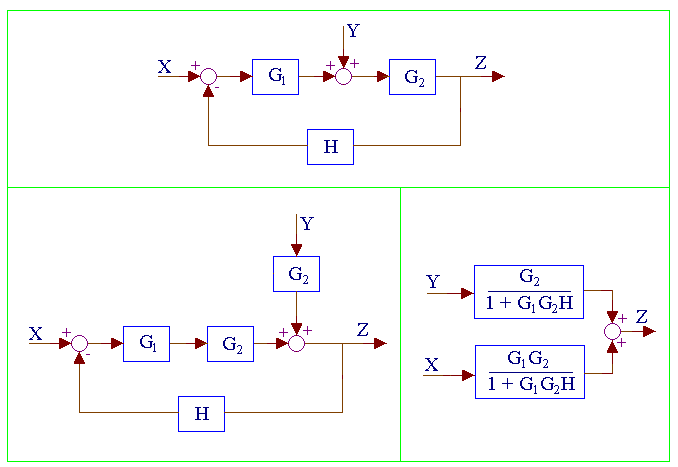

Equivalent: 1

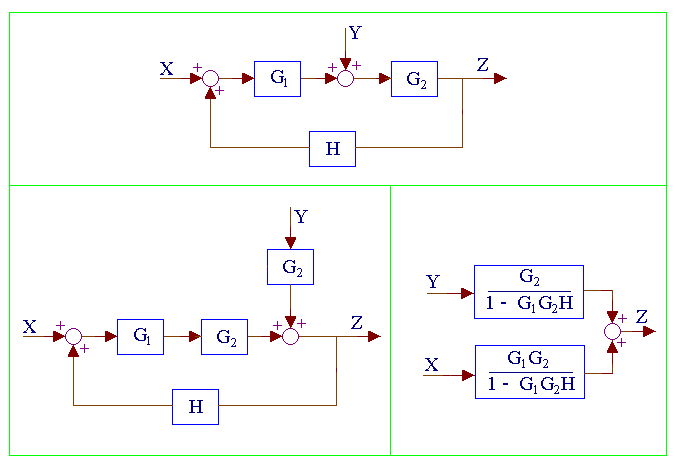

Equivalent: 2

Examples of Block Diagram Reduction
