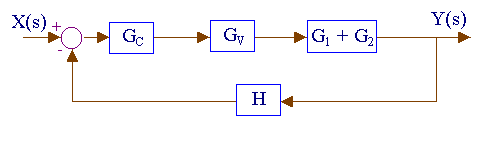

Negative Feedback & Blocks in Parallel - Block Diagram Simplification

Home -> ChE Learning Resources -> Solved Problems -> Process Control->


Rules of Block Diagram Reduction

Step: 1

Step: 2

Step: 3

Step: 4


Questions
